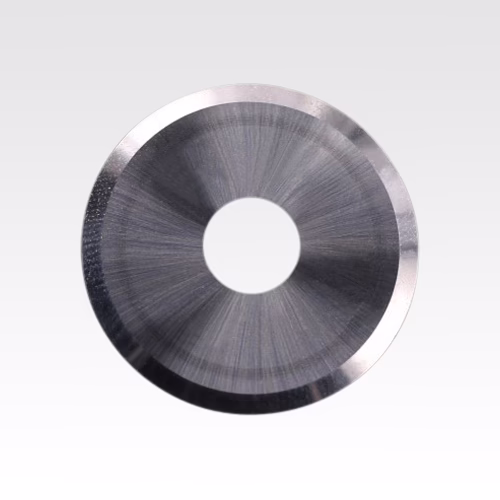

he XK-Z55 is a premium Ø28 mm rotary circular tungsten carbide cutter blade compatible with Zünd digital cutting systems. Designed for precision cutting of technical textiles, carbon fiber, and glass fiber materials. The rotary cutting action minimizes drag forces, produces clean fiber separation, and delivers excellent cutting quality at high processing speeds.
XK-Z55 – Zund compatible – plotter cutter blade – Ø28 mm – tungsten carbide
€5.95
In stock
In stock
Additional information
| Weight | 0.02 g |
|---|---|

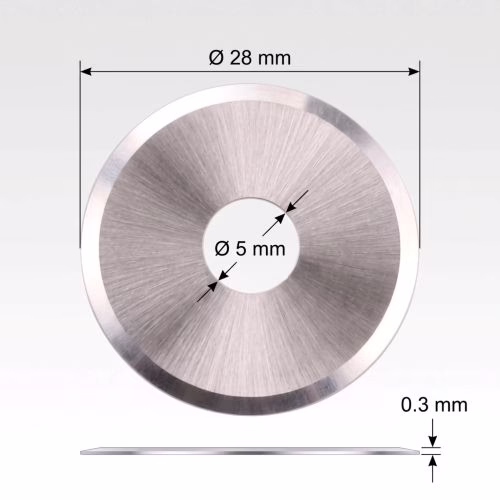

| Dimensions | 28 × 0.3 mm |
| Type plotter cutting blade | |
| Fabrics | Canvas, felt, Polyester fabric, carbon fiber, Fabrics, Technical textiles |
| Cutting Tool / Tool Module | |
| Diameter circular blade | |
| Thickness | 0,3 mm |
| Blade dimensions (mm) | |
| Blade metal |
Description
The XK-Z55 is a high-performance Ø28 mm rotary circular cutter blade manufactured from premium micro-grain tungsten carbide for demanding industrial textile and composite cutting applications.
Designed for use with Zünd rotary cutting tools, the XK-Z55 utilizes a rolling cutting action that significantly reduces drag forces on the material. This results in cleaner cuts, improved dimensional accuracy, and reduced fiber distortion compared to conventional drag or oscillating knives. Rotary cutting is particularly effective for technical textiles and reinforced fabrics where individual fibers must be cleanly separated without fraying or pulling.
Manufactured from wear-resistant tungsten carbide, the blade delivers long service life and excellent cutting consistency, even when processing abrasive fiber-reinforced materials such as carbon fiber and glass fiber fabrics.
Recommended Materials
Technical Textiles
- Polyester fabrics (PES)
- PVC-coated textiles
- Industrial fabrics
- Reinforced technical fabrics
- Coated textile materials
- Mesh fabrics
Composite Reinforcement Materials
- Carbon fiber fabrics
- Carbon fiber reinforcement materials
- Glass fiber fabrics
- Fiberglass textiles
- Reinforced composite fabrics
Industrial Fabrics
- Technical textile laminates
- Industrial reinforcement fabrics
- Protective textile materials
- Composite preform materials
