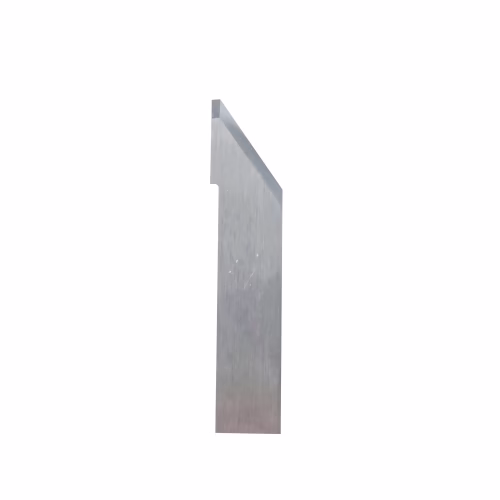

The XK-Z42 Tungsten Carbide blade is _ Zund Z42 compatible – oscillating – flat – blade that cuts soft materials like – leather – woven materials – felt – textiles – corugated card board – available in 20 blades per pack.
XK-Z42 Plotter cutter blade | Tungsten Carbide
€18.00
In stock
In stock
Additional information
| Weight | 0.02 g |
|---|---|

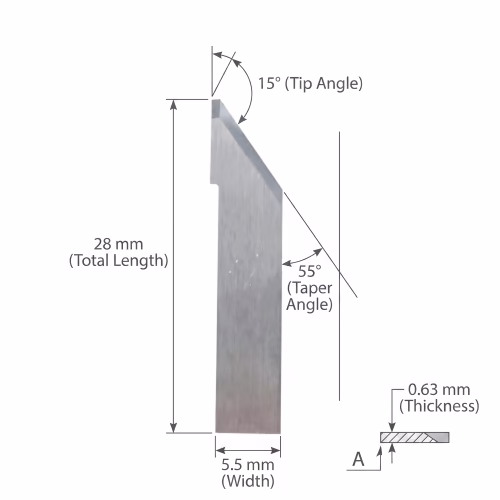

| Dimensions | 28 × 0.63 mm |
| Type plotter cutting blade | |
| Blade metal | |
| Blade angle (long side) | |
| Blade dimensions (mm) | |
| Blade tip angle | |
| Max. Cutting Depth | |
| Cutting Tool / Tool Module | |
| Compatible Holder | Blade Holder No. 5003138 – Zünd compatible – For oscillating cutting systems, Blade Holder No. 5208744 – Zünd compatible – For oscillating cutting systems |
| Pre-Cut | 0,7 x Tm |
| After-Cut | 0,80 mm |
| Recommended Materials |
Description
The XK-Z42 flat oscillating blade is manufactured from high-quality tungsten carbide, delivering exceptional durability, wear resistance, and cutting precision in demanding industrial applications. Designed with a small pre-cut, this blade ensures improved material penetration and enhanced cutting control, particularly when working with dense or layered materials.
Comparable in performance to the Z26 geometry, the XK-Z42 offers a balanced combination of robustness and precision, making it ideal for both detailed and high-throughput cutting tasks. Its flat blade design provides excellent stability during oscillating movements, resulting in clean, consistent edges with minimal material deformation.
This blade is particularly well-suited for use in flatbed cutting systems and automated plotter machines where reliability and repeatability are critical.
Recommended materials:
- Leather
- Fabrics and technical textiles
- Corrugated cardboard
- Packaging materials
- Flexible composites
The tungsten carbide construction significantly extends tool life compared to standard steel blades, reducing downtime and improving overall production efficiency.
OEM compatibility and private-label options are available upon request.
