The XK-Z53 is a premium tungsten carbide rotary cutter blade compatible with Zünd digital cutting systems. Designed for high-speed cutting of aramid fibers, fiberglass fabrics, single-layer fabrics, and technical textiles. The rotary cutting action delivers clean edges, minimal material distortion, and excellent cutting accuracy in demanding textile applications.

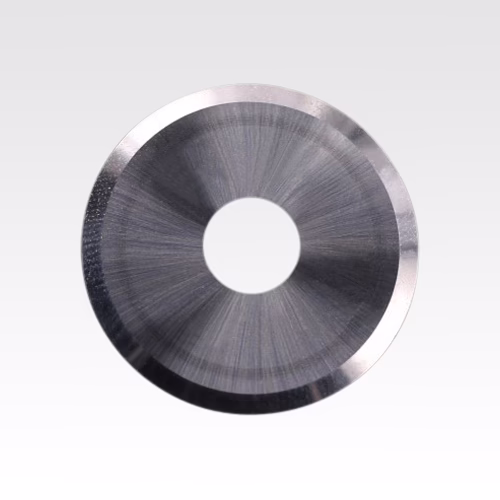

XK-Z53 – Zünd Compatible Rotary Circular Cutter Blade | Ø25 mm | Tungsten Carbide
€28.00
In stock (can be backordered)
In stock (can be backordered)
Additional information
| Weight | 0.02 g |
|---|---|

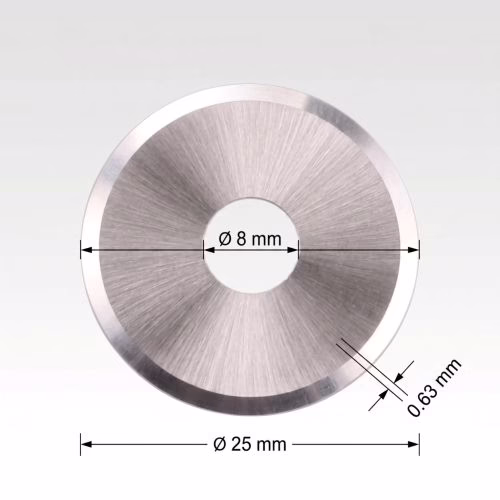

| Dimensions | 25 × 0.6 mm |
| Type plotter cutting blade | |
| Fabrics | Tarpaulin, aramid fiber, carbon fiber, glass fiber, Technical textiles |
| Cutting Tool / Tool Module | |
| Diameter circular blade | |
| Blade dimensions (mm) | |
| Blade metal | |
| Max. Cutting Depth |
Description
The XK-Z53 is a high-performance tungsten carbide rotary cutter blade engineered for precision cutting of textiles and fiber-reinforced materials on Zünd digital cutting systems.
Designed for use with rotary cutting tools, the XK-Z53 provides smooth and efficient cutting of woven and non-woven materials while minimizing fraying, fiber pull-out, and material deformation. The rotary cutting action allows the blade to roll through the material, reducing cutting forces and improving edge quality compared to conventional drag or oscillating knives.
Manufactured from premium micro-grain tungsten carbide, the blade offers outstanding wear resistance and long service life, even when processing abrasive fibers such as aramid and fiberglass.
The XK-Z53 is particularly suitable for cutting technical fabrics and composite reinforcement materials where dimensional accuracy and clean edges are critical.
Recommended Materials
Technical Fibers
- Aramid fibers
- Kevlar® materials
- Ballistic fabrics
- Reinforcement fabrics
Composite Reinforcements
- Fiberglass fabrics
- Glass fiber textiles
- Reinforced woven fabrics
- Composite reinforcement materials
Textiles
- Single-layer fabrics
- Polyester fabrics
- Cotton fabrics
- Woven textiles
- Non-woven textiles
Technical Textiles
- Technical fabrics
- Industrial textiles
- Filter materials
- Protective textiles
- Coated fabrics
