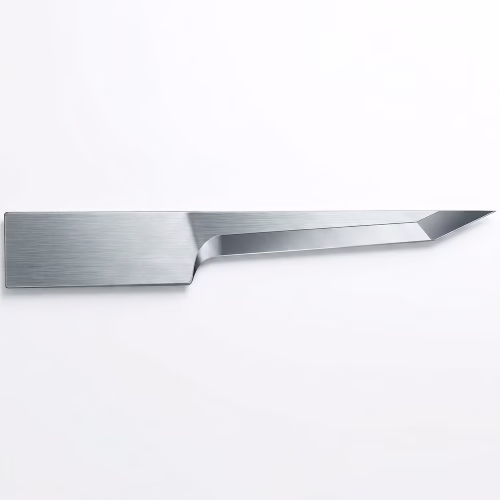

The XK-Z20 Tungsten Carbide blade is a drag – oscillating – pointed – blade – compatible with Zund Z20 that cuts corrugated cardboard – folding carton – light foam core – foam – ejection rubber – felt – available in 20 blades per pack.
XK-Z20 – Zund compatible – plotter cutter blade -tungsten carbide
€18.50
In stock
In stock
Additional information
| Dimensions | 25 × 0.63 mm |
|---|---|
| Type plotter cutting blade | |
| Fabrics | Corrugated cardboard; B-, C-, BC-, EB-, E-flute, Die-cutting rubber, Corrugated cardboard, ejection rubber, felt, foam, folding cardboard |
| Blade angle (long side) | |
| Reference nr. Kongsberg | |
| Cutting Tool / Tool Module | |
| Max. Cutting Depth | |

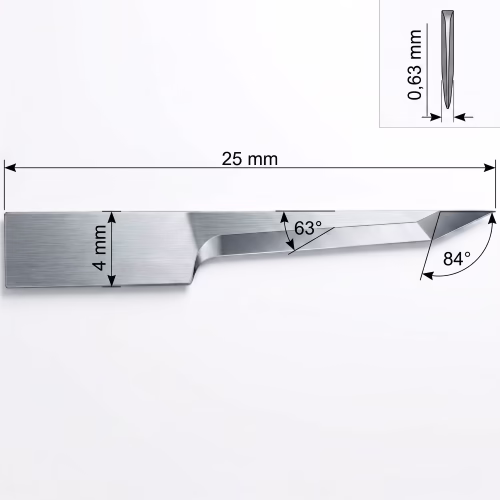

| Dimensions | 25x 4 x 0.63mm, max cutting depth 14.3mm, pre-cut 1.2+0.11xTm, cutting angles 63° 84° (tip) |
| Compatible Holder | Blade Holder No. 5003138 – Zünd compatible – For oscillating cutting systems, Blade Holder No. 5208744 – Zünd compatible – For oscillating cutting systems |
| Blade metal | |
| Blade tip angle | |
| Pre-Cut | 1,2 + 0,11 x Tm |
Description
The XK-Z20 is a high-performance tungsten carbide pointed blade, engineered for oscillating cutting applications. Its optimized tip geometry enables precise penetration and clean cutting across a wide range of industrial materials.
The sharp pointed blade enables minimal overcut for cutting small radii or small details.
Tungsten carbide construction significantly extends blade life compared to conventional steel blades, reducing downtime and improving productivity in demanding production environments.
Suitable for cutting:
• Corrugated cardboard; B-, C-, BC-, EB-, E-flute
• Folding box; 100–1500 g/m²
• Lightweight foam board
• Foam
• Die-cut rubber
• Felt
For universal abrasive-filled plastics and composites we recommend the XK-Z20TIN for longen life and lower change over costs.
OEM-compatible versions and private-label options are available upon request.
