The XK-Z54 is a premium Ø28 mm rotary circular tungsten carbide cutter blade compatible with Zünd digital cutting systems. Designed for high-speed cutting of textiles, technical textiles, carbon fiber, fiberglass, aramid fiber, and other advanced fabric materials. The rotary cutting action delivers clean edges, minimal fraying, and excellent cutting precision.
XK-Z54 – Zünd Compatible Rotary Circular Cutter Blade | Ø28 mm | Tungsten Carbide
€29.00
In stock (can be backordered)
In stock (can be backordered)
Additional information
| Weight | 5.5 g |
|---|---|
| Dimensions | 25 × 8 × 0.63 mm |
| Type plotter cutting blade | |
| Blade metal | |
| Blade dimensions (mm) | |

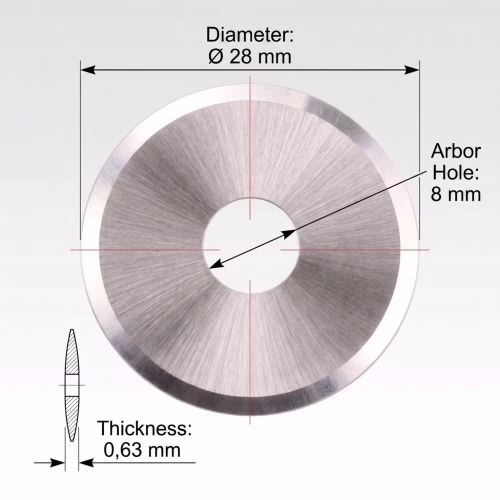

| Diameter Arbor Hole | Ø8 mm |
| Max. Cutting Depth | |
| Cutting Tool / Tool Module | |
| Recommended Materials | Tarpaulin, aramid fiber, carbon fiber, glass fiber, Technical textiles |
Description
The XK-Z54 Rotary Plotter Cutter Blade is a precision tungsten carbide blade developed for professional cutting of fabrics, single-layer textiles and advanced reinforcement fibers.
Blade Types for Industrial Applications
Based on the OEM-recommended applications, the XK-Z54 is particularly suitable for:
- Aramid Fiber
- Fabric
- Glass Fiber
- Single-Layer Textiles
The rotary cutting principle is well suited to flexible and fibrous materials. The cutting action helps provide controlled fiber separation while limiting material displacement in suitable applications.
Manufactured from high-quality tungsten carbide, the XK-Z54 combines excellent hardness, wear resistance and cutting-edge stability. These characteristics are particularly valuable when processing demanding reinforcement materials such as glass fiber, where abrasive fibers can accelerate cutting-edge wear.
The XK-Z54 is therefore particularly relevant to technical textile processing, composite reinforcement preparation and industrial fabric cutting.
Designed for Single-Layer Textiles & Reinforcement Fibers
The focused OEM material range gives the XK-Z54 a clear application profile for manufacturers processing flexible textiles and high-performance reinforcement materials.
OEM-recommended applications: Aramid Fiber · Fabric · Glass Fiber · Single-Layer Textiles
Aramid Fiber
Suitable for compatible aramid fabrics and reinforcement materials used in demanding technical textile and composite applications.
Fabric / Textiles
Suitable for precision rotary cutting of compatible fabric and textile materials.
Glass Fiber
Suitable for compatible glass-fiber reinforcement materials. Tungsten carbide’s high wear resistance is particularly beneficial when processing abrasive glass fibers.
Single-Layer Textiles
The XK-Z54 is particularly suited to compatible textile materials processed in a single-layer configuration, supporting controlled cutting without requiring a stacked material layup.
For glass fiber, abrasive edge wear is a major consideration. A TiN-coated XK-Z54 would therefore be the logical wear-oriented alternative.
For aramid and conventional textiles, a DLC-coated XK-Z54 could be particularly interesting where low friction, fiber drag and material build-up are more important.
