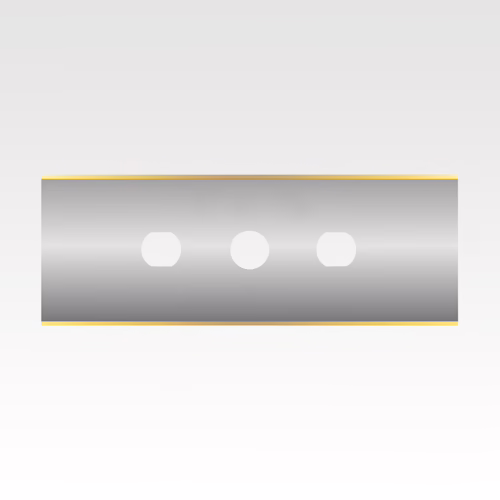

The XK-DL120TiN is a premium TiN-coated tungsten carbide 3-hole double edge industrial razor blade (60 × 22 × 0.20 mm). The Titanium Nitride coating provides exceptional wear resistance and extended blade life when slitting abrasive films, laminates, paper, labels, and filled plastics in demanding converting applications.
XK-DL120TiN | 3-Hole Double Edge |Tungsten Carbide | TiN Coated | 60 x 22 x 0.20 mm
€8.16
Additional information
| Weight | 0.03 g |
|---|---|
| Dimensions | 60 × 20 × 22 mm |
| Blade dimensions (mm) | |
| Blade metal | |
| Blade coatings | |
| Recommended Materials | Abrasive Materials – Thin, Film and Foil, Packaging materials, Masking Film, Paper, Polyester fabric, PP (Polypropyleen), textiles, Technical textiles |
Description
The XK-DL120TiN is a premium 3-hole double edge industrial razor blade manufactured from micro-grain tungsten carbide (88% WC / 12% Co) and enhanced with a high-performance Titanium Nitride (TiN) coating for maximum durability in demanding slitting and converting applications.
Learn more about tungsten carbideblades and their advantages in high-speed slitting and converting.
With dimensions of 60 × 22 × 0.20 mm, the blade offers increased cutting length and excellent rigidity, making it ideal for industrial slitting systems operating at high production speeds. The precision-ground double cutting edges provide clean, consistent cuts while allowing both edges to be used, maximizing blade life and reducing operating costs.
The TiN coating significantly increases surface hardness and wear resistance compared to uncoated tungsten carbide blades. This results in longer edge retention, reduced abrasive wear, fewer blade changes, and improved production efficiency when processing difficult or abrasive materials.
The XK-DL120TIN is particularly recommended for converting operations involving mineral-filled plastics, coated papers, laminates, technical films, adhesive materials, and other applications where blade wear is a critical factor.
Learn more about TiN coated industrial blades.
Manufactured in Europe to precise tolerances, every XK-DL120TIN delivers reliable cutting performance, outstanding dimensional accuracy, and extended service life in continuous industrial production.
OEM-compatible and private-label versions are available upon request.
The XK-DL120TIN is ideal for:
- Plastic film slitting
- Foil converting
- Paper converting
- Flexible packaging production
- Label manufacturing
- Roll-to-roll converting
- Slitter rewinders
- Narrow web slitting
- Medical packaging
- Food packaging
- Industrial converting
