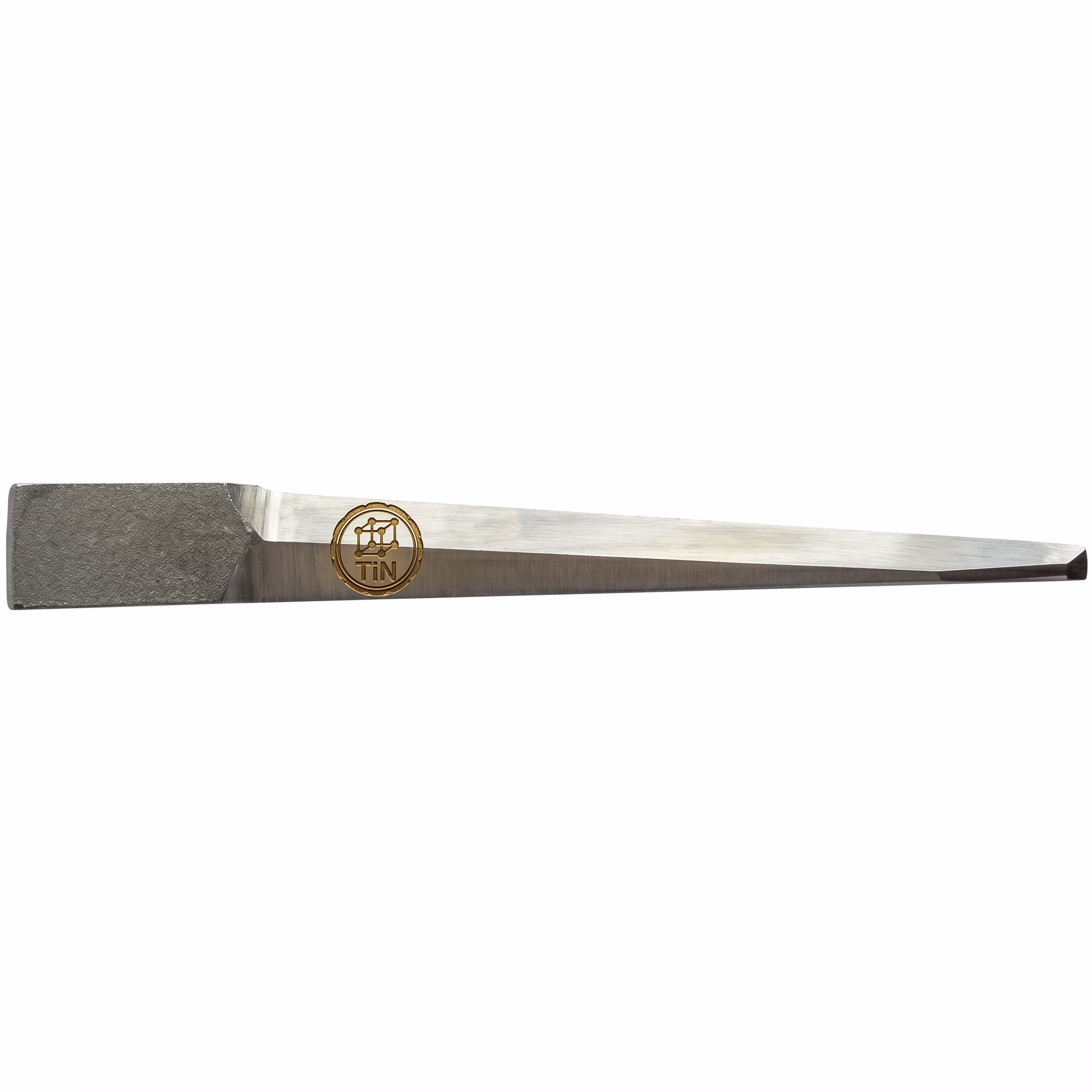

The XK-Z69TiN is a heavy-duty TiN-coated tungsten carbide oscillating blade designed for Zünd-compatible cutting systems. Engineered for cutting thick abrasive materials, composites, sandwich boards, and heavy industrial substrates with maximum wear resistance and extended blade life.
XK-Z69TIN – Zund compatible – plotter cutter blade -tungsten carbide-Tin coated
€22.50
In stock
In stock
Additional information
| Weight | 0.5 g |
|---|---|

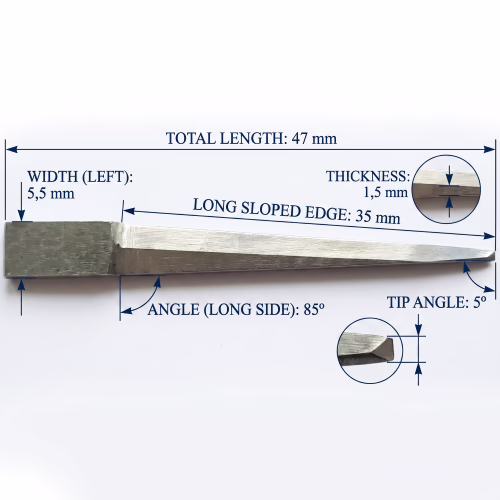

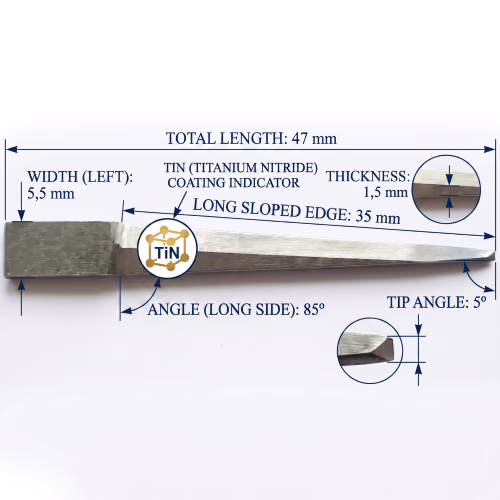

| Dimensions | 47 × 5.5 × 1.5 mm |
| Fabrics | Abrasive Materials – Thick, Multi-Layer Materials – Medium, Multi-Layer Materials – Thick, Rubber composites, Hard Foam, Insulating mat., Corrugated board, Corrugated plastic, gasket materials, Sandwich materials |
| Blade angle (long side) | |
| Cutting Tool / Tool Module | |
| Max. Cutting Depth | |
| Thickness | 1,5 mm |
| Blade tip angle | |
| Blade dimensions (mm) |
Description
The XK-Z69TiN is a premium heavy-duty tungsten carbide oscillating blade with TiN (Titanium Nitride) coating, specifically engineered for demanding industrial cutting applications involving thick abrasive and composite materials.
The advanced TiN coating significantly improves surface hardness and wear resistance, making the XK-Z69TiN particularly suitable for abrasive materials that rapidly wear conventional cutting blades. The coating also reduces friction and heat buildup during heavy-duty oscillating cutting operations.
The XK-Z69TiN performs exceptionally well on:
- Thick corrugated cardboard
- Gasket materials
- Honeycomb board
- Sandwich materials
- Fiberglass reinforced plastics (FRP)
- Carbon fiber composites
- Thick composite laminates
- Foamboard and rigid foam materials
- Mineral-filled plastics
- Technical insulation materials
- Heavy-duty packaging materials
